IPB038N12N3 G
Manufacturer:
Infineon
Mfr.Part #:
IPB038N12N3 G
Datasheet:
Description:

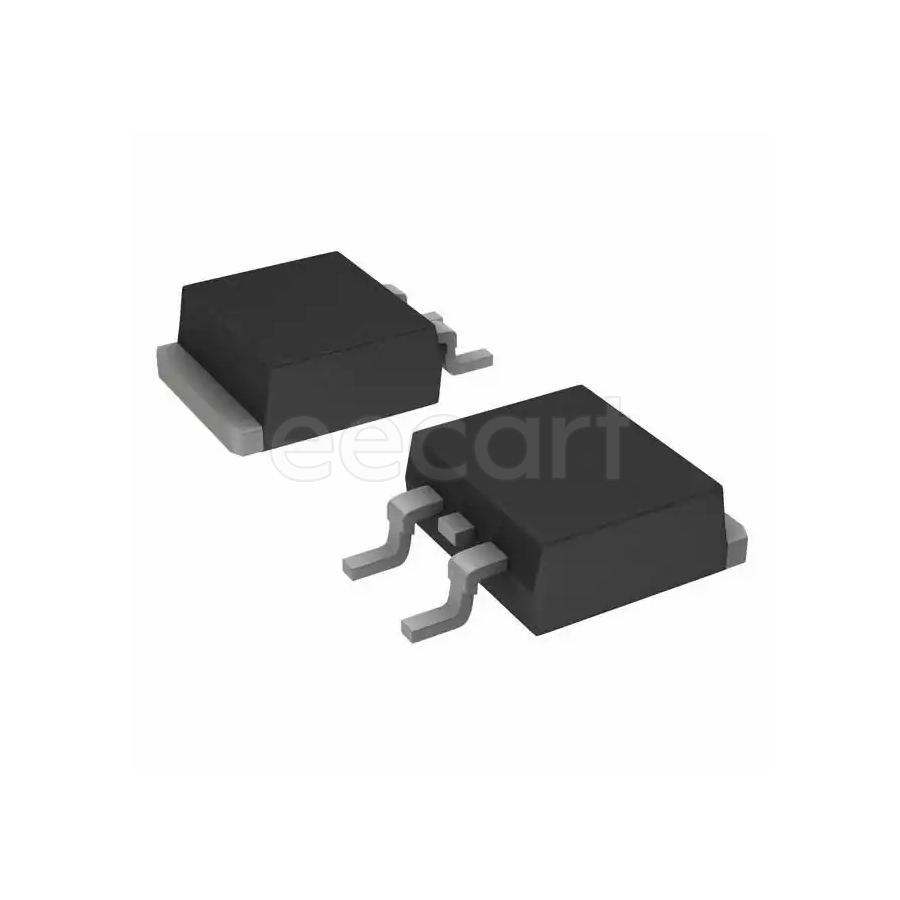

MOSFETs PG-TO263-2 SMD/SMT N-Channel number of channels:1 300 W 120 V Continuous Drain Current (ID):120 A 211 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 300 W |
| Number of Channels | 1 |
| Input capacitance | 13800 pF |
| Continuous Drain Current (ID) | 120 A |
| Gate Charge | 211 nC |
| Drain to Source Resistance | 3.2 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 120 V |
| Gate to Source Threshold Voltage | 2 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 3310
Distributors
pcbx
pcbxUnit Price$2.70329
Ext.Price$2.70329
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.70329 | $2.70329 |
| 10 | $2.12792 | $21.27920 |
| 25 | $1.98256 | $49.56400 |
| 50 | $1.84713 | $92.35650 |
| 100 | $1.72097 | $172.09700 |
| 300 | $1.62420 | $487.26000 |
| 500 | $1.53289 | $766.44500 |
| 1000 | $1.30206 | $1302.06000 |
| 3000 | $1.29977 | $3899.31000 |
| 5000 | $1.29749 | $6487.45000 |
| 10000 | $1.29522 | $12952.20000 |
